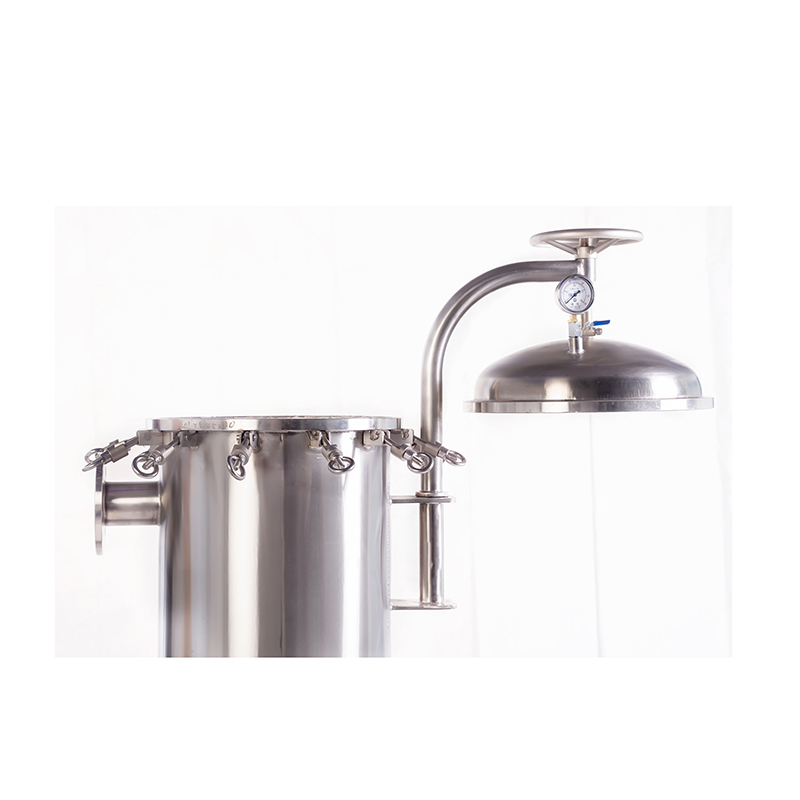

Stainless steel bag filter housing for water treatment

Short Description:

Bag filter is a common industrial filter that uses a filter bag to filter the fluid, removing impurities, particles, and other substances, thereby achieving the goal of purifying the fluid. Bag filters are usually composed of filter shells, filter bags, inlet and outlet pipelines, support baskets, etc.

Ltank company manufactures various bag filter housings to meet different requirements in the capacity, dimensions and materials. We support deep customization.15-years’ experience guarantees the quality of each filter and high efficiency of production and good service for our clients and long term cooperation.

Product Detail

Product Tags

The working principle of the bag filter

The working principle of the bag filter

1. Feed: The fluid enters the shell of the bag filter through the inlet pipeline.

2. Filtration: When the fluid passes through the filter bag, impurities, particles, and other substances are filtered out by the pores on the filter bag, thereby achieving the purpose of purifying the fluid. The filter bags of bag filters are usually made of materials such as polyester, polypropylene, nylon, polytetrafluoroethylene, etc. Different materials of filter bags have different filtration accuracy and corrosion resistance.

3. Discharge: The fluid filtered by the filter bag flows out from the outlet pipeline of the bag filter, achieving the purpose of purification.

4. Cleaning: When impurities, particles, and other substances accumulate to a certain extent on the filter bag, it is necessary to clean or replace the filter bag. Bag filters usually use methods such as back blowing, water washing, and mechanical cleaning to clean the filter bags.

vsn (2)

The advantages of bag filters are good filtration efficiency, simple operation, and convenient maintenance. Bag filters are suitable for industries such as chemical, pharmaceutical, food, beverage, electronics, semiconductor, textile, papermaking, metallurgy, petroleum, natural gas, etc. They are widely used for the filtration and purification of liquids and gases.

vsn (3)
vsn (4)
vsn (1)
