Stainless steel basket filter strainer, hair collector for water treatment

Short Description:

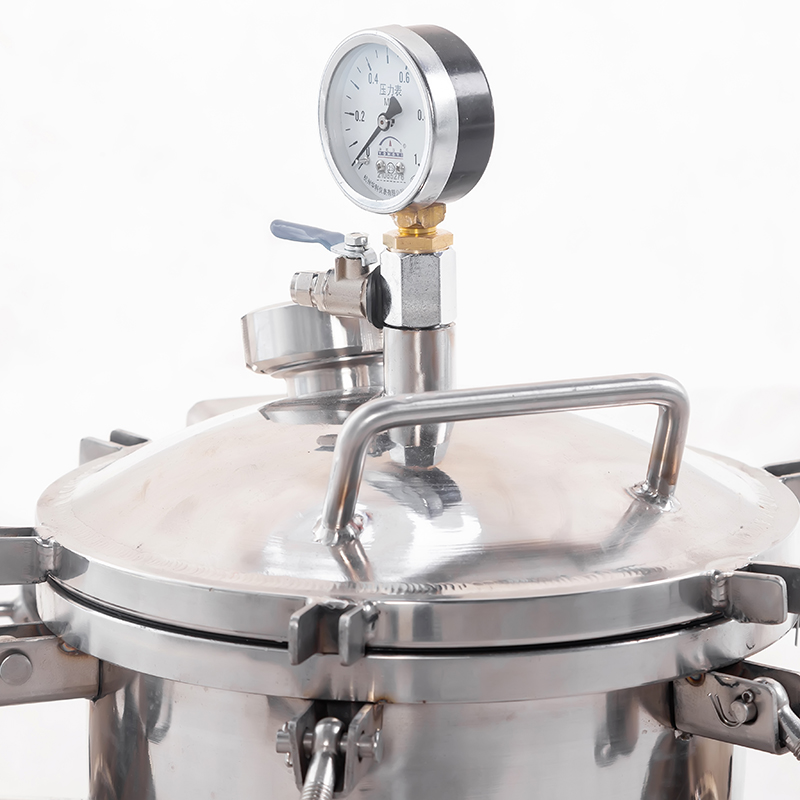

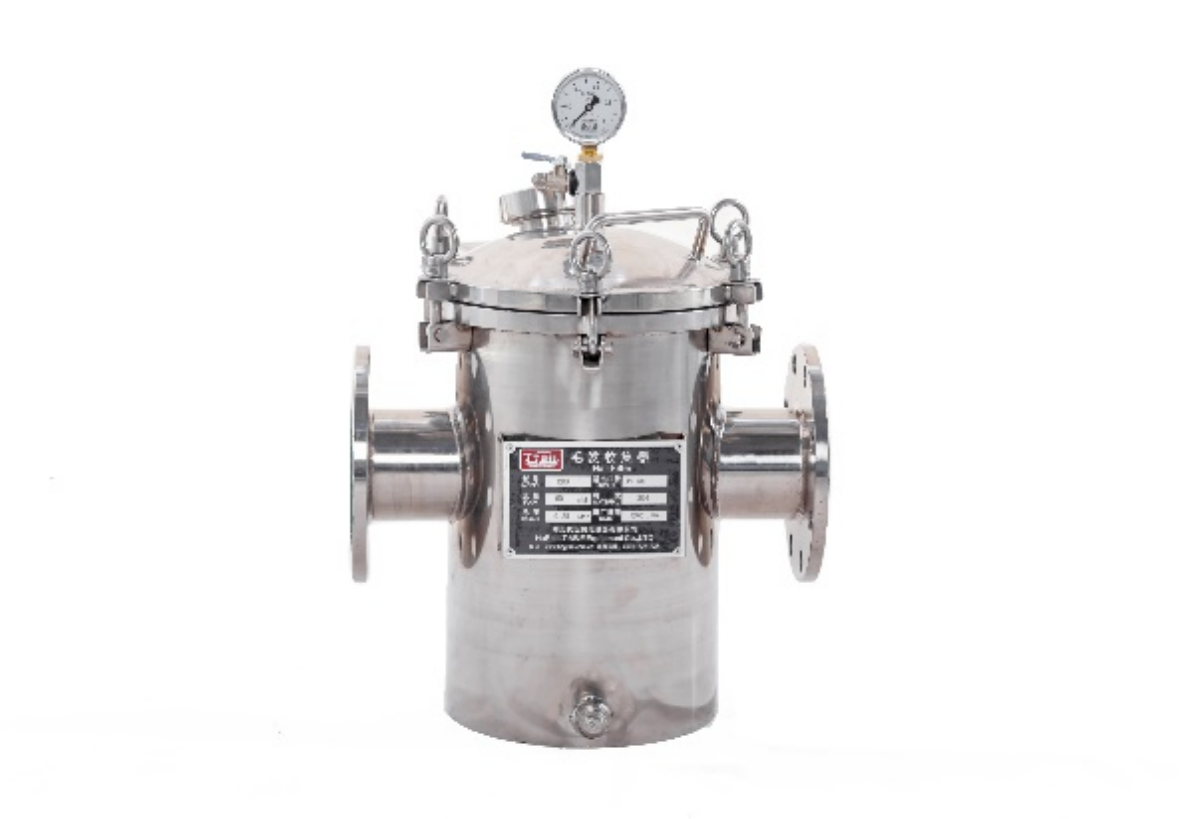

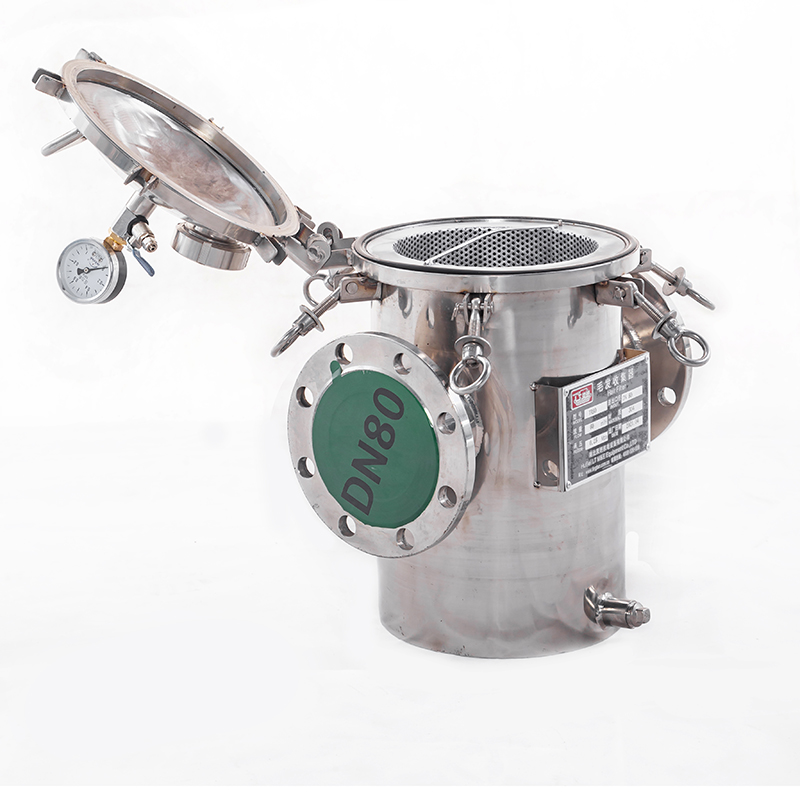

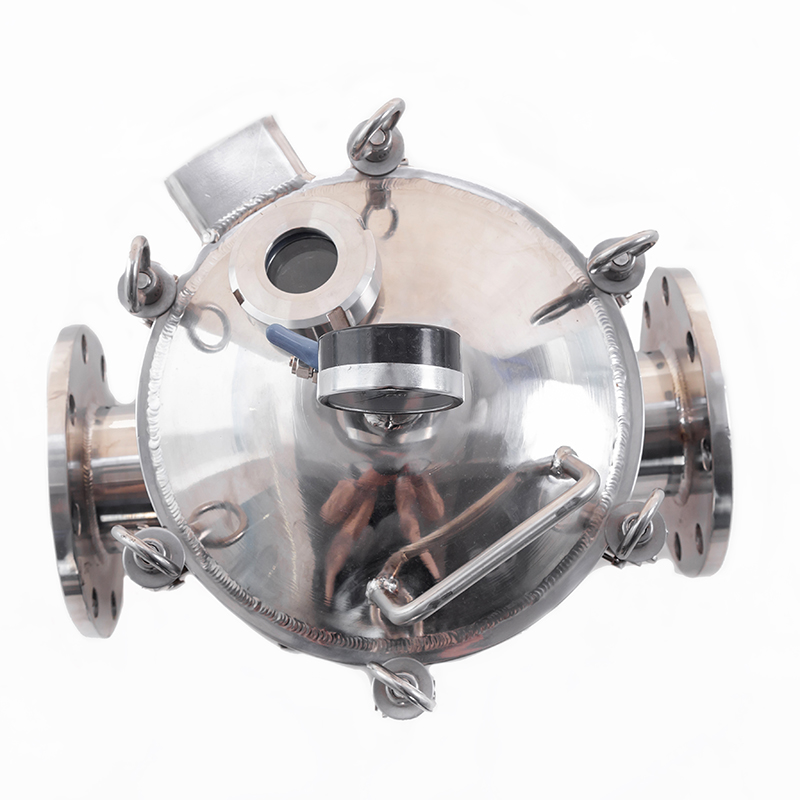

The hair collector mainly consists of a connecting pipe, cylinder, filter basket, flange cover, and fasteners. The equipment can remove solid particles from the liquid and also protect the normal operation of subsequent equipment. When the fluid enters the filter cartridge with a certain specification of filter screen, its solid impurities are blocked in the filter basket, and clean fluid flows out from the filter outlet through the filter basket. When cleaning is required, use a wrench to loosen the plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and take out the filter basket. After cleaning, it can be reinstalled, making it extremely convenient for use and maintenance.

Send email to us

Product Detail

Product Tags

The working principle of the bag filter

Introduce

Item	Swimming pool hair collector
Model	LTR
Material	Stainless steel 304 / 316
Open type	Quick open flange type / Thread type
Application	swimming pool / water parks /SPA
Function	Collector Hair ,etc. in water
Included	tank housing + Basket inside
Size:	customized

Item NO.	Specification: (DiaLenghtHeight*Thick)	Pipe size(DN )
TR-32	Φ160270250*2-3	32
TR-40	Φ160270250*2-3	40
TR-50	Φ160270250*2-3	50
TR-65	Φ220370350*2-3	60
TR-80	Φ220370350*2-3	80
TR-100	Φ275400400*2-3	100
TR-125	Φ275400400*2-3	125
TR-150	Φ275400400*2-3	150
TR-200	Φ350510490*2-3	200
TR-250	Φ400580520*2-3	250

The hair collector is mainly used to filter and intercept hair and other debris in sewage, in order to avoid blockage of drainage pipelines and ensure that various water treatment equipment and pipelines are in good operating condition.

Application Method of Hair Collector

1、 In general, it is necessary to regularly clean the hair collector once a month.

2、 When performing cleaning operations, the first step is to close the water inlet valve of the equipment. Remove the upper cover screws and open the upper cover.

4、 Take out the inclined plate filter cartridge and rinse the dirt inside the tank and above the inclined plate filter cartridge with water.

5、 After cleaning, install various components firmly in sequence, open the main pipeline valve, and restart the equipment to put it into use.

Superiority

The biggest application advantage of hair collectors is that the specifications and dimensions of this device product can be customized according to the specific needs of users, thereby maximizing the performance of the device. This type of equipment is currently widely used in the bathing industry and some swimming pool venues, especially when the swimming pool water is recycled, it is more necessary for filtration treatment to make the water quality clear and transparent, and meet the swimming pool water quality standards.
